Industrial Welded Steel Tanks: Engineering, Standards & Design Guide

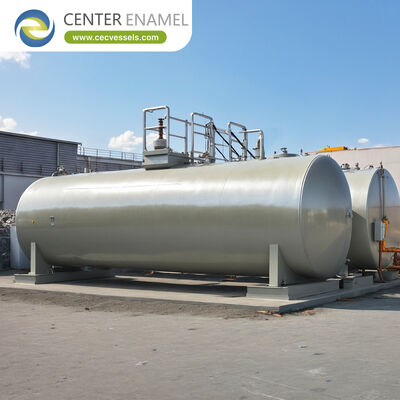

Industrial welded steel tanks are the backbone of modern storage for oil, gas, water, chemicals, and industrial wastewater. Unlike bolted alternatives, welded construction creates a monolithic, crevice-free structure, minimizing leak risks and maximizing structural longevity. Whether governed by API 650 for petrochemicals or AWWA D100 for water, these vessels are precision-engineered to withstand hydrostatic pressure, seismic loads, and environmental degradation.
1. Engineering Principles: Structural Integrity
The primary engineering challenge in tank design is managing the Hoop Stress (circumferential stress) exerted by the stored liquid. As a tank fills, the internal hydrostatic pressure pushes outward against the shell walls.
The formula for calculating the required shell thickness (t) at a given height is derived from the thin-walled pressure vessel equation:
Welded steel tanks excel here because the Joint Efficiency (E) of a high-quality, full-penetration weld is significantly higher than that of a mechanical bolted joint with gaskets. This creates a leak-proof system capable of holding high-density fluids safely for decades.
2. Industry Standards and Compliance
Regulatory compliance is non-negotiable for industrial storage. The design must adhere to the specific standard based on the product stored and the operating pressure:
API 650 (Welded Tanks for Oil Storage): The global "gold standard" for atmospheric pressure storage tanks. It covers materials, design, fabrication, erection, and testing.
API 620: Used for tanks designed to operate at pressures slightly higher than atmospheric (up to 15 psig).
AWWA D100: The standard specifically for welded steel tanks used in municipal water storage.
UL 142: Generally used for smaller, shop-fabricated steel tanks containing flammable/combustible liquids.
3. Material Selection Matrix
Selecting the right steel is a balance of corrosion resistance, structural strength, and budget.
| Material Type | Corrosion Resistance | Structural Strength | Primary Application |
|---|---|---|---|
| Carbon Steel (e.g., A36) | Low (Requires coating) | High | General oil, water, and fuel storage. |
| 304 Stainless Steel | High | High | Food & Beverage, mild chemical. |
| 316L Stainless Steel | Excellent | High | Aggressive chemicals, acids, ultrapure water. |
| Duplex Stainless Steel | Extreme | Very High | High-salinity brine, extreme corrosive environments. |
4. Fabrication and Inspection (Quality Control)
Quality assurance in welded steel tanks is defined by rigorous testing during and after fabrication. Because the weld is the most critical failure point, Non-Destructive Testing (NDT) is vital:
Visual Inspection (VT): Checking for surface cracks or undercut.
Radiographic Testing (RT): X-raying welds to identify internal voids or porosity.
Vacuum Box Testing: Used on tank floor welds to ensure a perfect, bubble-free seal.
Ultrasonic Testing (UT): Measuring shell thickness and weld integrity without damaging the material.
5. Maintenance Best Practices
To maximize the "Return on Investment" (ROI) and safety of an industrial tank:
Cathodic Protection: Implementing impressed current or sacrificial anode systems is mandatory for buried or ground-contact carbon steel tanks to prevent galvanic corrosion.
Coating Integrity: Regular inspection of the internal lining and external paint prevents oxidation.
Vent Maintenance: Ensure pressure-vacuum (PV) vents are clear to prevent the tank from buckling due to internal vacuum during pump-out.
6. Frequently Asked Questions (FAQ)
Q: Welded vs. Bolted Steel Tanks—Which is better?
A: Welded tanks provide a monolithic, leak-proof structure that is ideal for flammable or hazardous materials. Bolted tanks are easier to transport and assemble in remote locations but rely on gaskets and seals, which introduce potential leak paths over time.
Q: How long can an industrial welded steel tank last?
A: With proper maintenance, cathodic protection, and periodic inspection, a well-built API 650 welded steel tank can easily exceed a 30-to-40-year service life.
Q: What is the most common cause of failure in steel tanks?
A: Corrosion. Specifically, underside corrosion of the tank floor caused by moisture trapped between the tank foundation and the steel plate is the #1 cause of tank bottom failure.
Industrial welded steel tanks are engineered to provide robust, secure containment for the world's most critical industrial fluids. By adhering to API 650 and other international standards, and by utilizing high-quality welding and material selection, operators can ensure compliance, safety, and operational efficiency for decades.
