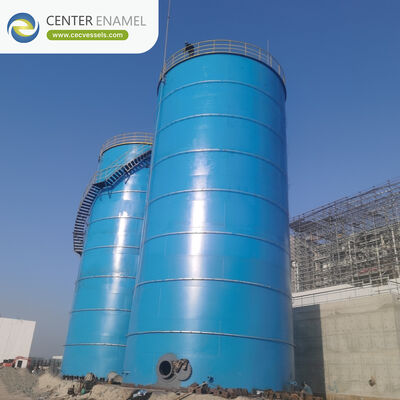

Industrial Fuel Farm Tanks: Custom Welded Steel Solutions

For industrial fuel farms, custom welded steel tanks offer the highest level of structural integrity, leak prevention, and site-specific operational efficiency. Unlike mass-produced alternatives, custom fabrication allows for precise nozzle configuration, internal lining selection, and secondary containment integration. Built to standards like API 650 or UL 142, these tanks are engineered to handle the rigorous duty cycles of petrochemical, aviation, and power generation fuel storage.

The longevity of a fuel farm tank is dictated by its material of construction and the quality of the weld. Industrial fuel tanks typically utilize carbon steel (e.g., ASTM A36) or stainless steel (e.g., 316L for high-purity or corrosive biofuels).

The thickness of the tank shell must be custom-engineered to withstand the Hoop Stress exerted by the stored fuel at the base of the tank.

Custom fabrication allows for variable shell thickness (thicker at the bottom, thinner at the top) to optimize material costs while maintaining the safety margin mandated by API 650.

Fuel farm efficiency depends on the integration of the tank into the broader piping and pumping infrastructure. A custom build addresses site-specific constraints that off-the-shelf tanks cannot:

• Site-Specific Nozzle Placement: Custom positioning of inlet/outlet, vent, and manway nozzles minimizes piping runs, reduces pump load, and eliminates "dead legs" in the fuel lines.
• Internal Coating/Lining: Depending on the fuel (e.g., aggressive ethanol blends, biodiesel, or crude oil), the tank interior can be custom-lined with epoxy or phenolic coatings to prevent internal corrosion.
• Integrated Heating/Agitation: For heavy fuel oils or viscous feedstocks, custom heating coils (thermal oil or hot water) or mechanical agitators can be installed during the welding process, ensuring uniformity and pumpability.
• Foundation Compatibility: Custom-designed base plates allow for anchoring to existing concrete pads or seismic-rated foundations.

In an industrial fuel farm, the primary risk is environmental contamination. Modern custom tanks integrate advanced safety features into the welded design.

The Double-Wall Tank design is the industry standard.

1. Primary Wall: Holds the fuel.
2. Interstitial Space: The gap between the walls.
3. Secondary Wall: Provides 110% containment capacity.

Custom tanks can be factory-fitted with:

• Interstitial Vacuum/Pressure Sensors: To detect breaches in either the inner or outer wall before a leak occurs.
• Cathodic Protection Systems: Integrated sacrificial anodes or impressed current systems (ICCP) to prevent external soil-side corrosion.
• High-Accuracy Level Gauges: Radar or servo-level transmitters integrated directly into the tank head for real-time inventory management.

Q: Does custom fabrication increase the certification requirements?

A: Yes, custom tanks must be fabricated and inspected according to specific codes (API 650, UL 142, or ASME). You must ensure your fabricator is certified to weld to these standards, as code-stamped tanks are essential for insurance and regulatory compliance.

Q: How do I choose between carbon steel and stainless steel?

A: Carbon steel is the standard for petrodiesel and standard fuel oils (with proper coating). Stainless steel (316L) is required if you are storing aggressive biofuels, highly refined aviation fuels, or chemicals that have high acidity that would rapidly pit carbon steel.

Q: Can a welded tank be relocated?

A: Generally, no. Welded tanks are designed as permanent, site-erected structures. If your fuel farm needs to be mobile, you should look into skid-mounted, shop-fabricated welded tanks, which are limited in size by transport regulations.

Industrial fuel farm tanks are critical assets that require a tailored engineering approach. By opting for custom welded steel construction, operators gain not just a storage vessel, but an integrated component of their facility that is optimized for safety, longevity, and operational throughput.

Are you currently planning the design or expansion of a fuel storage farm?

Selecting the right steel grade and secondary containment system early in the design phase significantly reduces long-term maintenance costs and compliance headaches.
